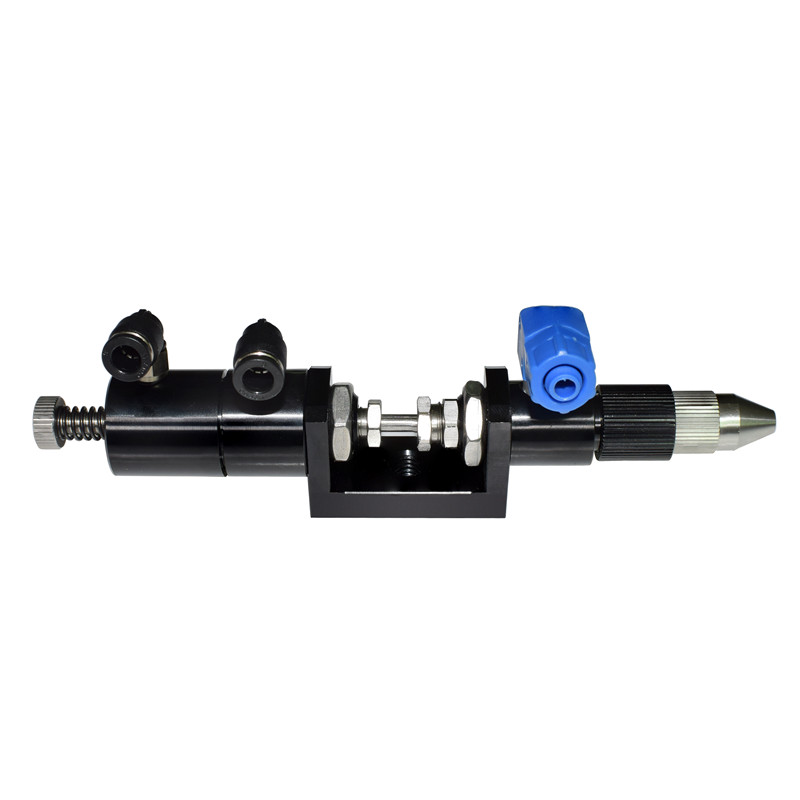

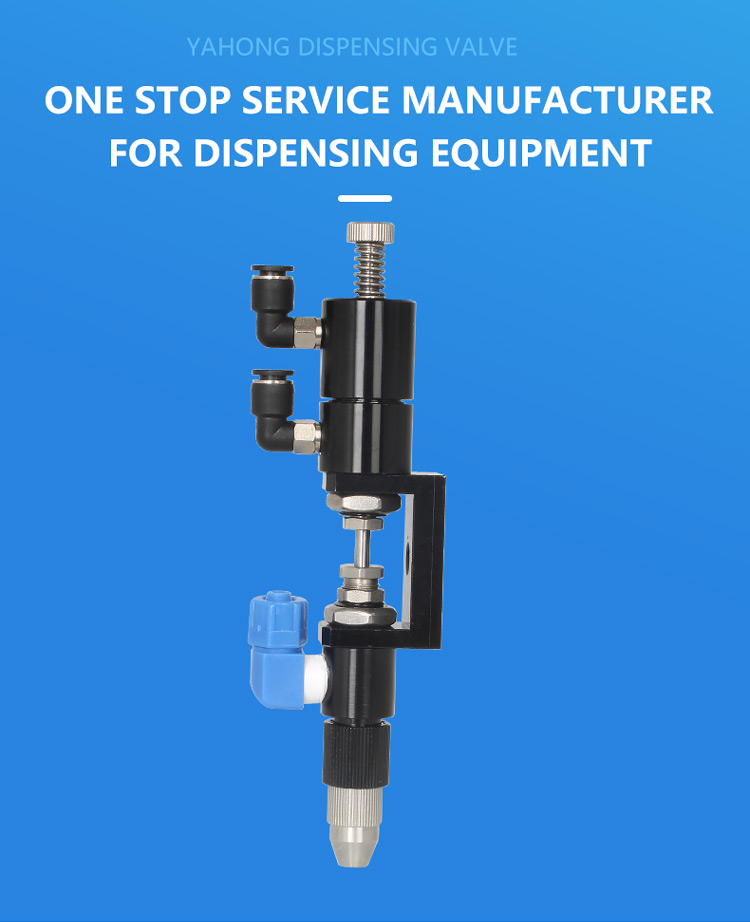

| Product name | Double action needle dispensing valve |
Branding: Yakoo | Model:YK-36 |
Working air pressure | 4-7kgf/cm2 |
Minimum output | 0.01ml |
| Using viscosity | 1-10,0000CPS |
| Material | Aluminum alloy anode |
| Weight | 180g |
Operating Frequency | <600 times/min |
| Feed pressure | <10kg |
| Feed size | G1/8 |
1. This valve is a high-end precision reciprocating needle type dispensing valve. The internal air of the dispensing valve is separated from the glue, and a removable and washable seal is used for easy maintenance and debugging;
2. It is usually used in conjunction with a dispensing controller and a pressure bucket, and does not require direct control of the glue circuit. The goal of controlling the glue dispensing can be achieved by controlling the air source; The precise dispensing can be achieved by adjusting the micrometer to adjust the dispensing amount;
3. Simple and safe operation, saving adhesive materials, and keeping the site clean and tidy;
4. The discharge port can be used with various needles to meet the requirements of various dispensing speeds and ranges.
Suitable for: very thin glue.
Viscosity: 10000 to 10000.
Applicable fluids: water , low viscosity liquids , horn glue, yellow glue (universal glue), UV glue, water-based glue, alcohol, etc.
Structure of dispensing valve: Top needle dispensing valve (without suction function).
Advantages: High precision and long service life.
