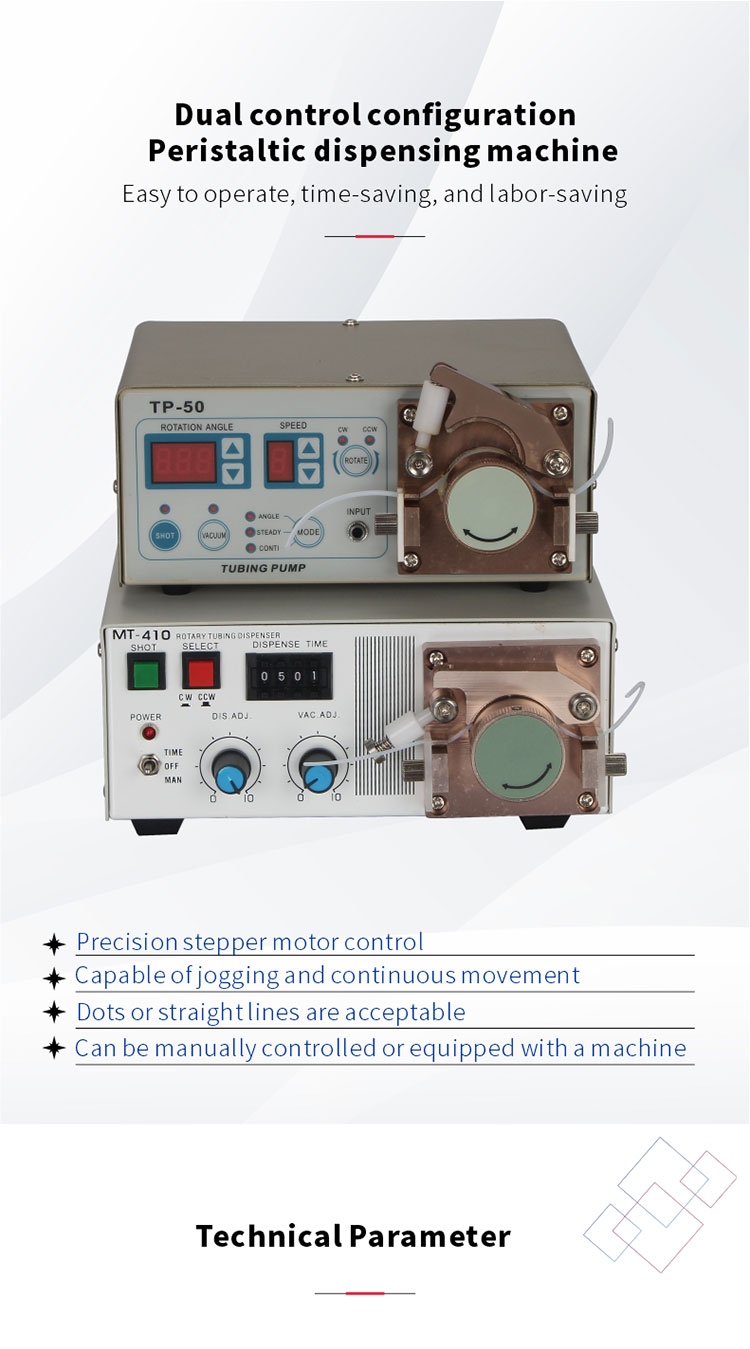

Product features:
1. Precision stepper motor control.
2. It can be jogged and continuous.
3. Dotting or straight lines are acceptable.
4. It can be manually controlled or equipped with a machine.
Applicable scope:
Spot glue on products with low viscosity liquids such as instant drying glue and ink that require less glue.

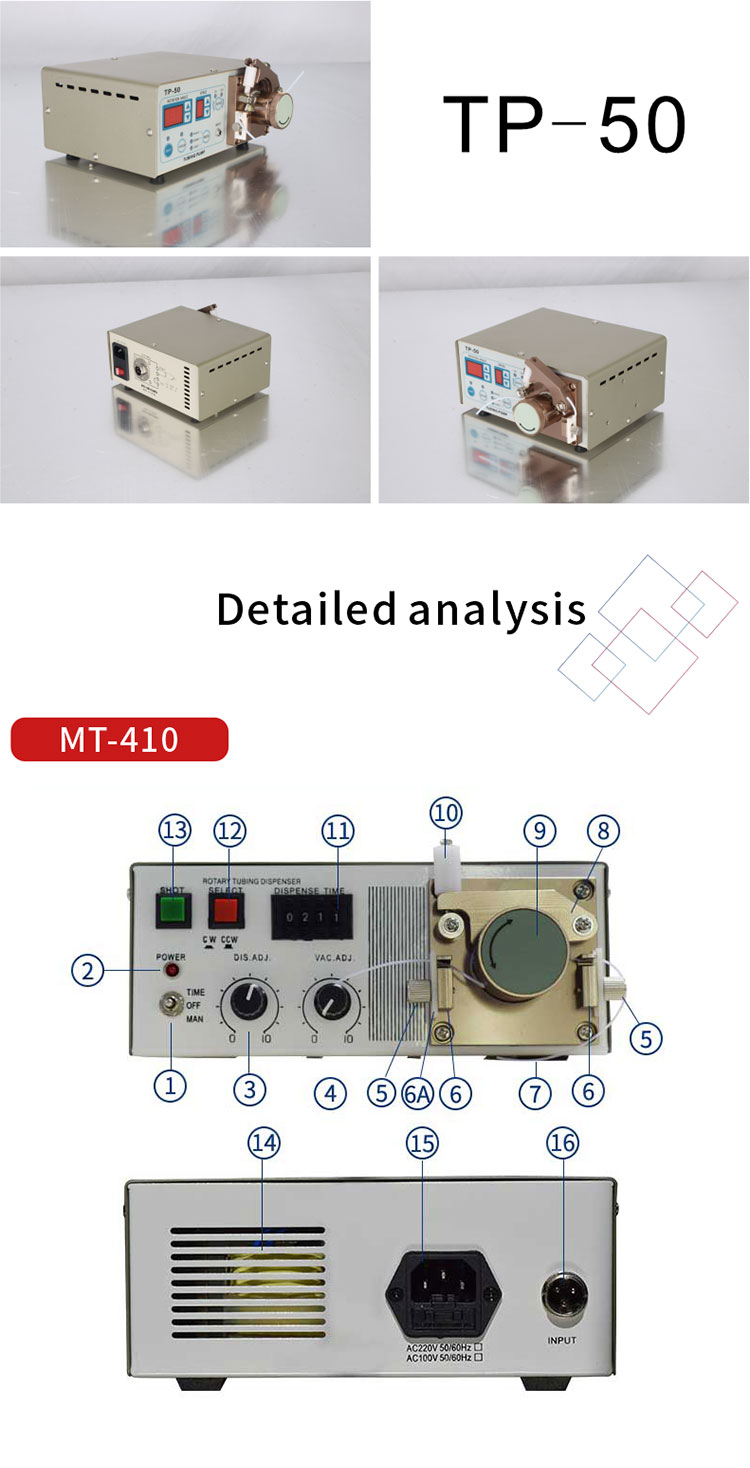

| Technical Parameters | MT-410 | TP-50 |
| Speed | 0~200RMP | 0-160RPM |
| Adjustment range of glue dispensing amount | 0~999.9° | 0~999.9° |
| Adjustment range of rebound adhesive amount | 0~400° | 0~400° |
| Minimum glue output | 0.0001ml | 0.00001ML |
| Applicable material viscosity | Below 1000CPS | Below 5000CPS |
| Ejection mode | Stable action mode (quantitative discharge), manual control mode | Stable action mode (quantitative discharge), manual control mode |
| Power supply | AC100V+10% 50Hz/60HZ AC220V+10% 50HZ/60Hz | AC220V 50/60HZ |
| Total power | 30VA | 10VA |
| Dimension(L*W*H) | 188x210X88（mm) | 168*148*88MM |
| Weight | 3.5KG | 2.5KG |
