PRODUCT PARAMETER
| Product name | High precision single and double action dual-purpose dispensing valve |
| Branding | Yakoo |
| Model | YK-31S |

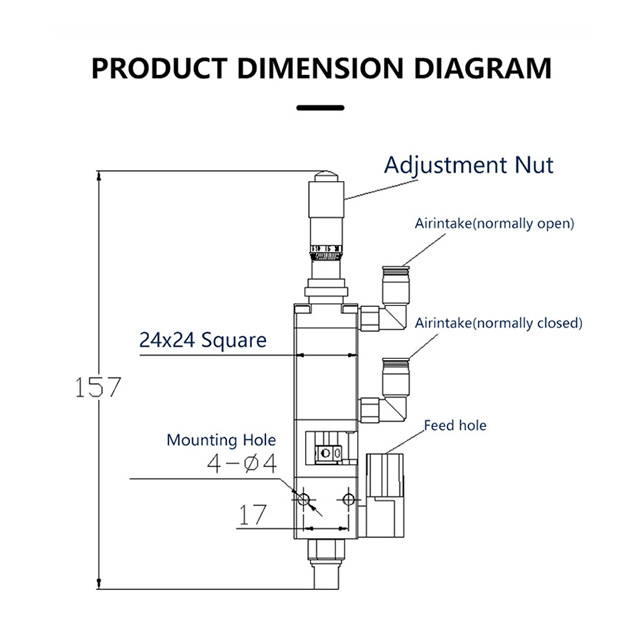

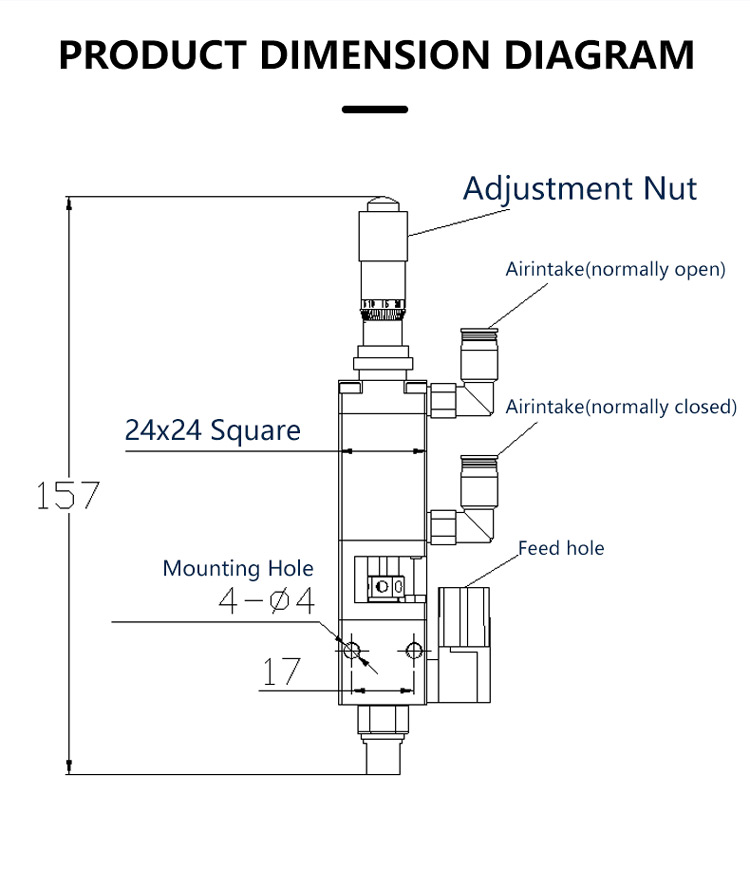

| Dimension | (D)24*(H)160mm |
| Working form | Single/multiple action needle dispensing valve |
| Material | Aluminum alloy anode/Special steel |
| Weight | 460g |
| Control mode | Two position five way solenoid valve |
| Working air pressure | 4-7kgf/cm2 |
| Installation hole position | 4 |
| Minimum output | 0.001ml |
| Feed size | G1/8 |
| Feed pressure | <10kg |
| Operating Frequency | <600 times/min |
| Suitable for: very thin glue. Viscosity: 10000 to 10000. Applicable fluids: Such as water, low viscosity liquids , xanthan gum (universal glue), UV glue, water-based glue, alcohol and so on. Structure of dispensing valve: Top needle dispensing valve (without suction function) Advantages: High precision and long service life | |
| Function | 1. This valve is a precision reciprocating needle dispensing valve. The internal air of the valve is separated from the glue, and a removable and washable seal is used for easy maintenance and debugging. control the glue circuit. The purpose of controlling the glue dispensing can be achieved through the control of the air source, and the precise dispensing can be achieved by adjusting the dispensing amount with a micrometer. meet the requirements of various dispensing speeds and ranges. |
| Application area | Industries such as speakers, audio manufacturing, mechanical hole sealing, capacitors, module filling, circuit board dispensing, beverages, and pharmaceutical filling. |
