PRODUCT PARAMETER

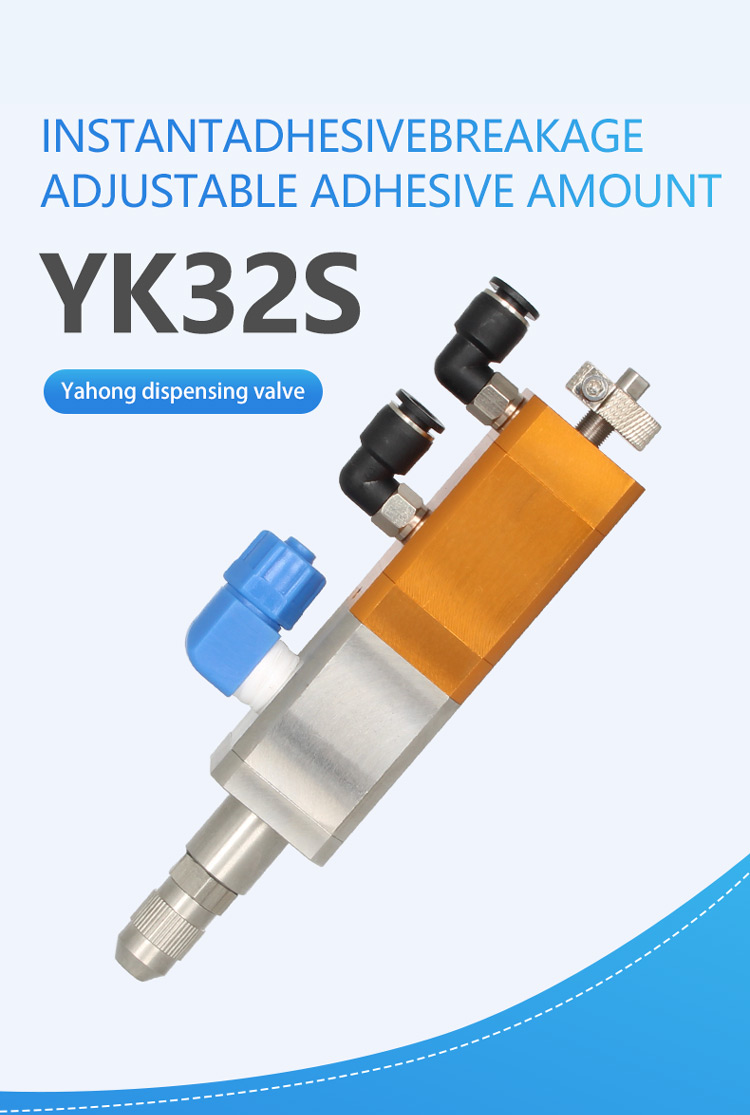

| Product name | Double action suction dispensing valve |
| Branding | Yakoo |
| Model | YK-32S |
| Working form | Repeated lifting type |
| Working air pressure | 4-7kgf/cm2 |
| Control mode | Two position five way solenoid valve |
| Minimum output | 0.01ml |
| Using viscosity | 1-100,0000 CPS |
| Material | Aluminum alloy anode/Special steel |
| Feed pressure | <10kg |
| Feed size | G1/8 |
| Can the flow be adjusted | YES |
| Operating Frequency | <600 times/min |

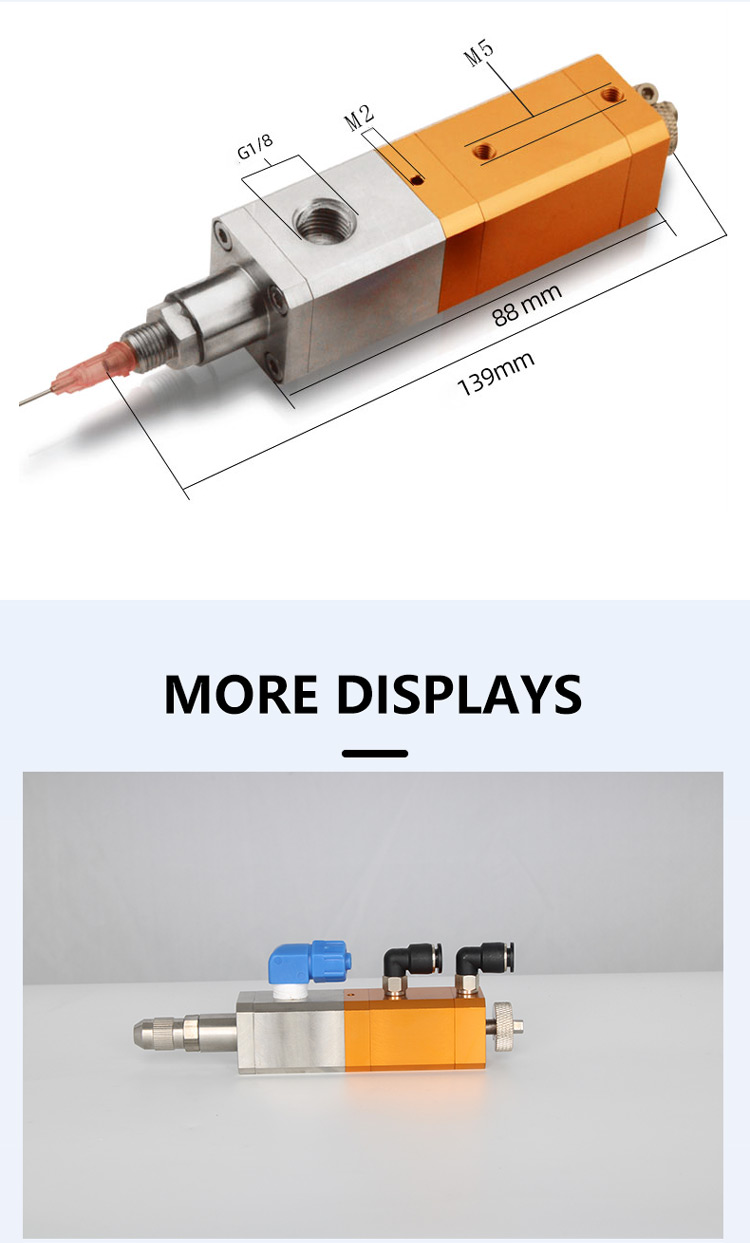

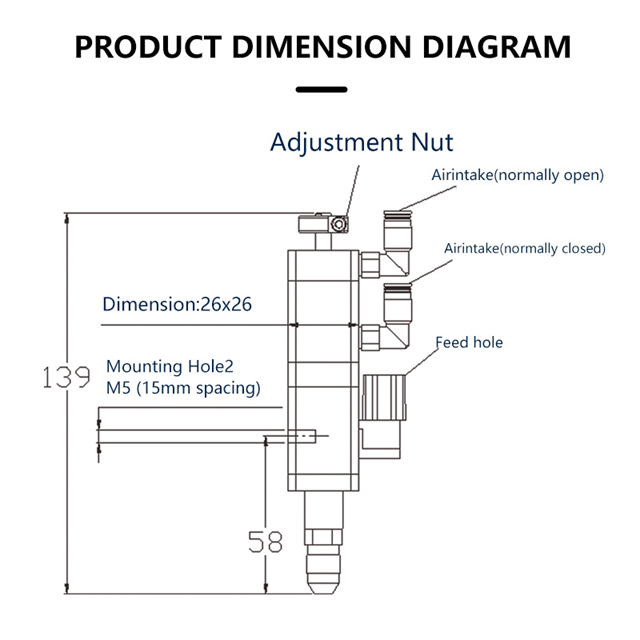

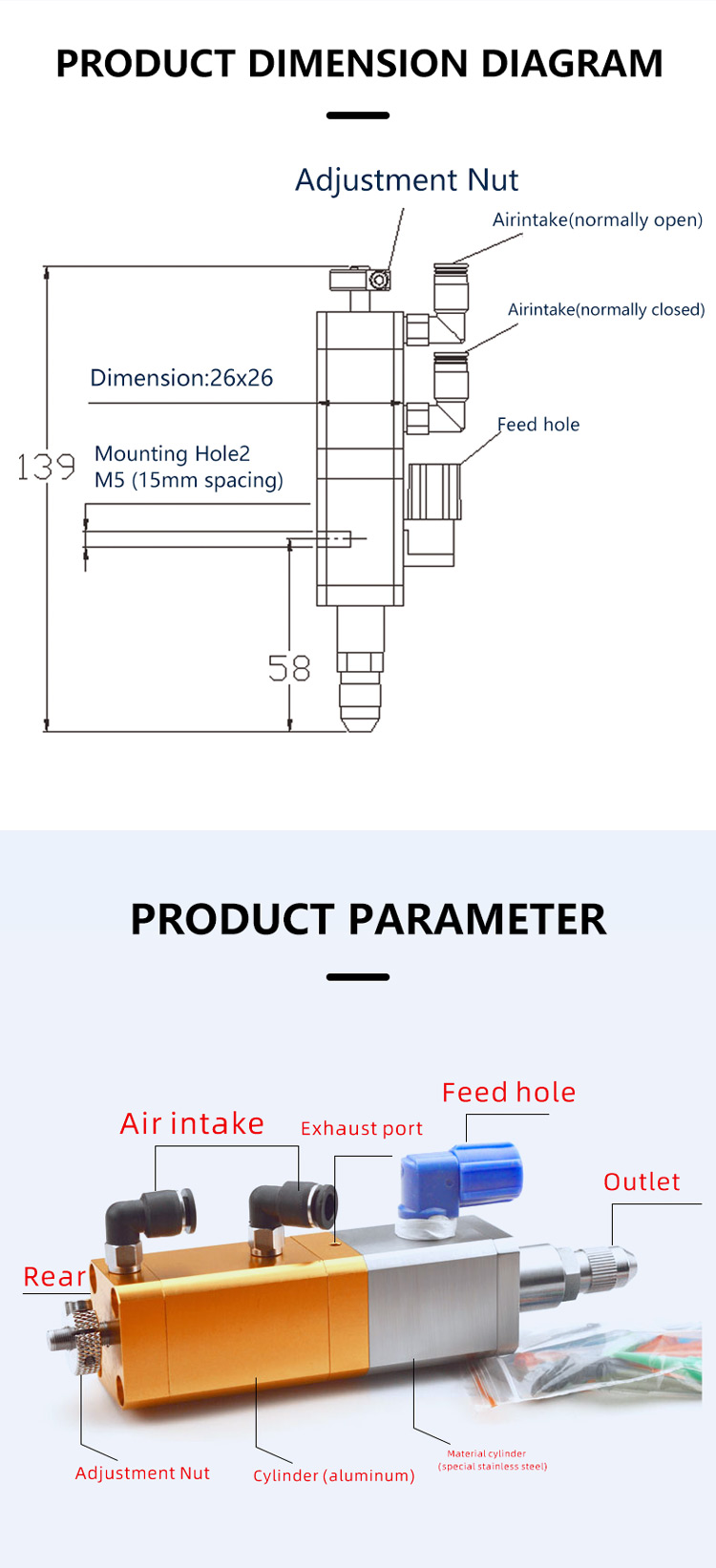

| Dimension | (D)26mm×(H)139mm |
| Weight | 336g |
Suitable for: medium viscosity or medium high viscosity adhesives.
Viscosity: 10000-100000.
Applicable fluids: Such as water, silicone, butter and so on.
Structure of dispensing valve: lifting dispensing valve (with suction function).
