Technical Parameter
| Product name | Single/multiple action needle dispensing valve |
| Branding | Yakoo |
| Model | YK-35 |
| Working form | Single/multiple action top pin type |
| Working air pressure | 4-7kgf/cm2 |
| Control mode | Two position five way solenoid valve |
| Minimum output | 0.01ml |
| Using viscosity | 1-20,0000 CPS |
| Material | Aluminum alloy anode |
| Feed pressure | <10kg |
| Feed size | G1/8 |
| Can the flow be adjusted | NO |
| Operating Frequency | <600 times/min |
| Weight | 170g |
Suitable for: very thin glue.
Viscosity: 10000 to 10000.
Applicable fluids: Such as water, low viscosity liquids , bonded adhesive,
yellow adhesive (universal adhesive), UV adhesive, water-based adhesive, alcohol and so on.

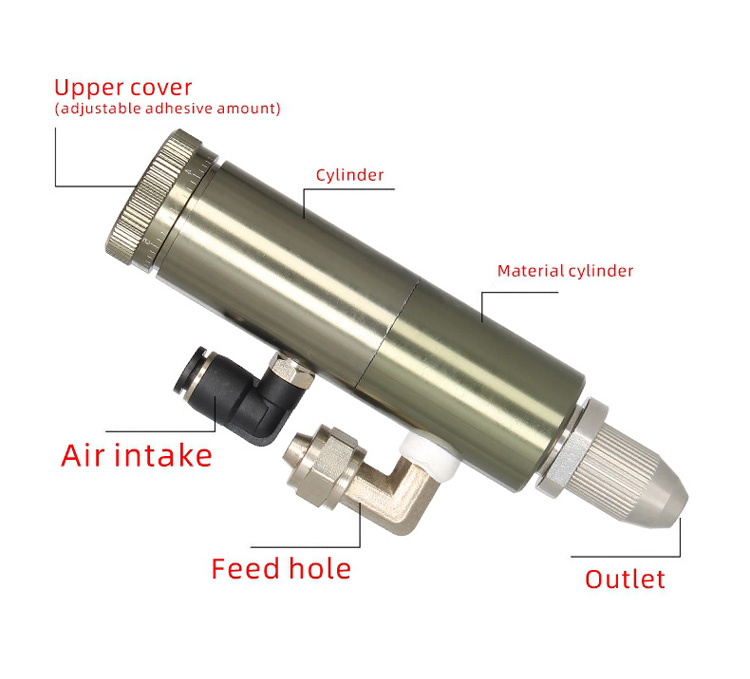

Structure of dispensing valve: Top needle dispensing valve (without suction function).
Advantages: Large flow rate, fast response, high accuracy, and long service life.
