Features & Advantages:
1. Chinese teaching box operation, easy to learn and understand;
2. It has functions such as drawing points, lines, surfaces, arcs, circles, irregular curves, continuous interpolation, and three-axis linkage;
3. The software has functions such as region array, translation and rotation operations;
4. The glue quantity, thickness, coating speed, dispensing time, and stopping time can all be set as parameters, with stable glue output and no leakage of glue;
5. Depending on the process requirements, a workbench positioning PIN, glue gun, or bottom plate heating and temperature control device can be installed.
Applicable glue:
UV adhesive, AB adhesive, EPOXY (black adhesive), white adhesive, EMI conductive adhesive, SILICON, epoxy resin, instant adhesive, silver adhesive, red adhesive, solder paste, heat dissipation paste, anti solder paste, transparent paint, screw fixing agent, etc.
Application industry:
Semiconductor packaging, PCB electronic component fixation and protection, mobile phone and laptop shell bonding, LCD glass substrate packaging, LED dispensing, optical lens dispensing and packaging, automotive component coating, chip bonding, hardware component coating and bonding, battery packaging, speaker dispensing, quantitative liquid filling, etc.
Technical Parameters
| Model | YK-200 | YK-300 | YK-400 |
| Effective Travel | 200X*200Y*75Z（mm） | 300X*300Y*75Z（mm） | 400X*400Y*75Z（mm） |
| Max load | 3Kg | ||
| Top speed | 400mm/s | ||
| Analytic ability | 0.01mm | ||
| Repeat accuracy | ±0.025mm | ||
| Date storage: | About 10000 Programs | ||
| Drive mode | Stepping motor+3M belt+precise linear guide rail | ||
| Programmatically | Import teaching programming or graphics | ||
| Movement pattern | 3 axis point to point,continuous line, arc | ||
| Operation system | Hand-held operation board | ||
| External Control Interface | Start button | ||
| Power supply | AC 220V | ||
| Temperature condition | 0-40℃ | ||
| Humidity condition | 10%-70% | ||
| Dimension(L*W*H): | 400×480×500（mm） | ||
| Weight | 35kg | ||
More details

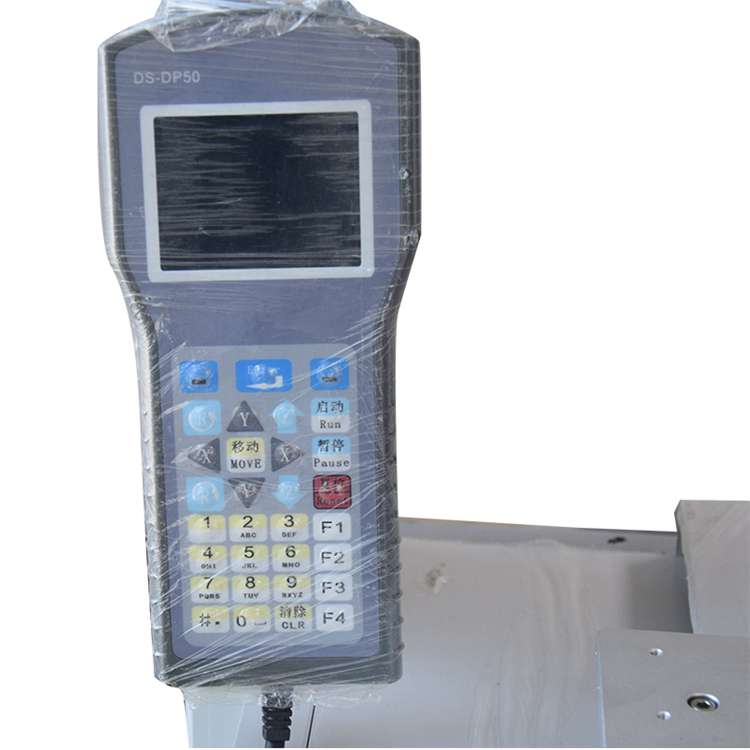

English teaching box operation,
easy to learn and understand.

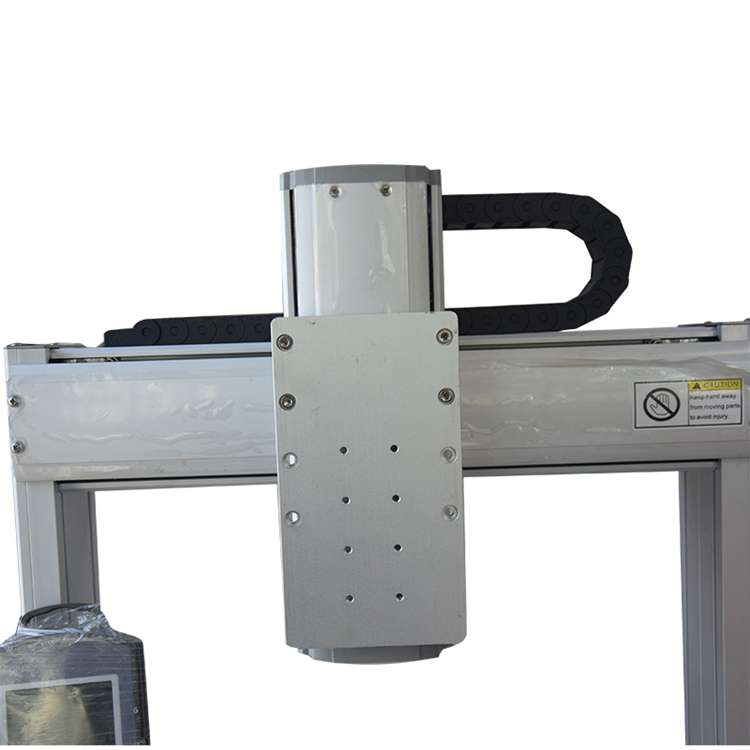

All mechanical parts are processed using CNC machining,
ensuring the precision and consistency of the parts

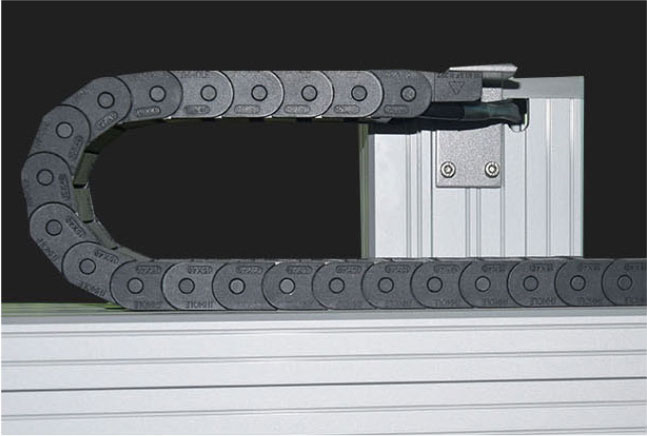

3M synchronous be lt, built-in steel wire, dura ble and wear-resistant
