Features & Advantages:

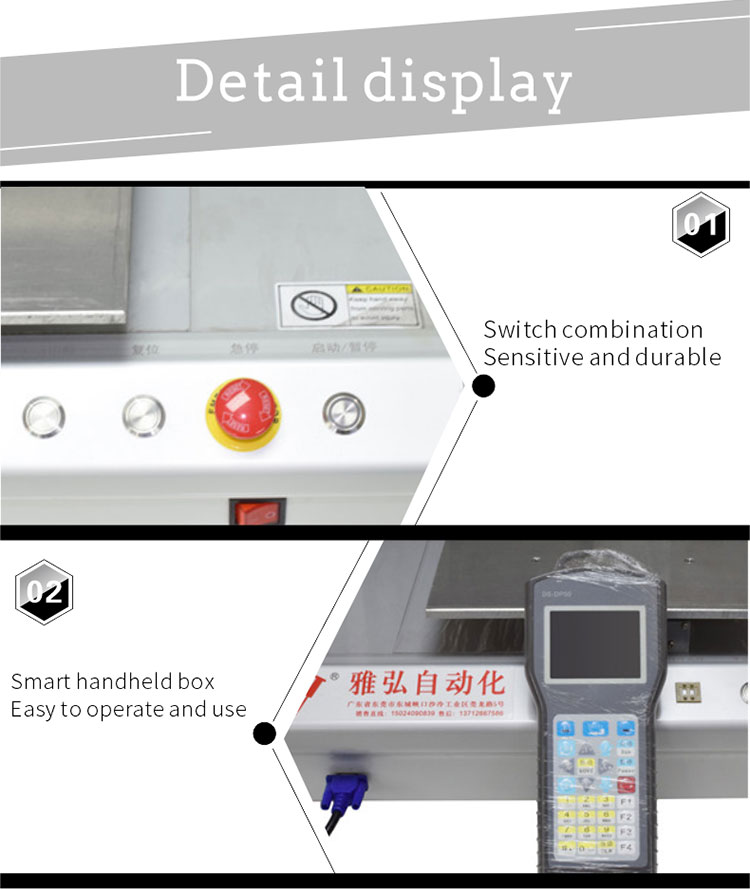

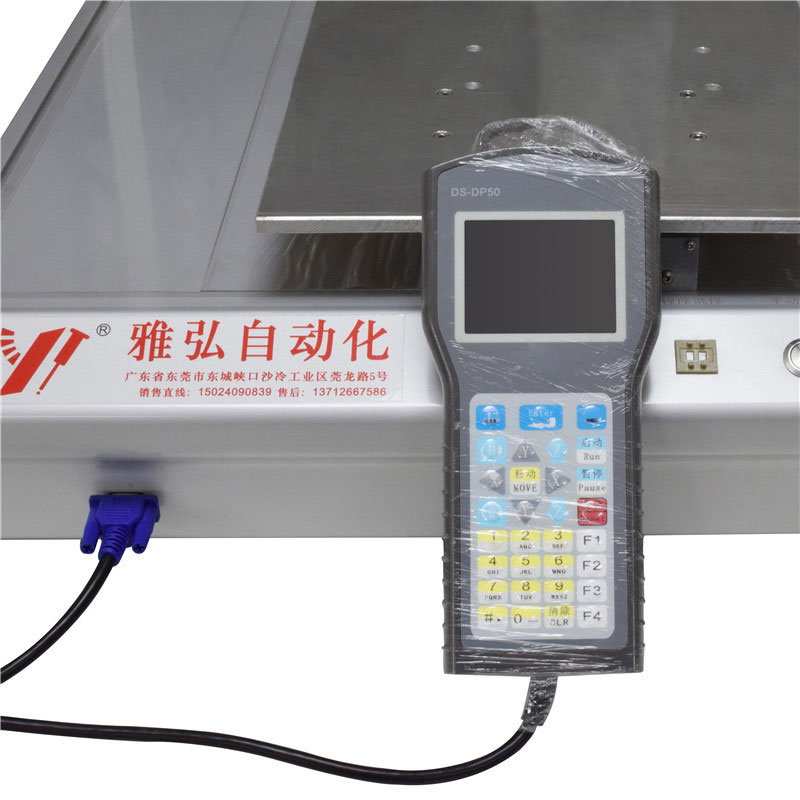

1. Chinese teaching box operation, easy to learn and understand.
2. It has functions such as continuous interpolation of drawing points, lines, surfaces, arcs, circles, irregular curves, and three-axis linkage.
3. The software has functions such as array, copy, translation, offset, and rotation operations.
4. The glue quantity, thickness, coating speed, dispensing time, early opening and closing time are set to ensure stable glue output without dripping or drawing.
5. The dual Y function allows for the placement of the right Y-axis product when the left Y-axis product is glued, and the left Y-axis product when the right Y-axis product is glued, thereby increasing production.
6. Can spray any shape and side spray.
7. According to the production process requirements, it can be customized according to product requirements.
Applicable glue:
White latex, yellow adhesive, water-based adhesive, hot melt adhesive, etc.
Technical Parameters
Model | YK-8441R | YK-10551R | ||
Dimension(L*W*H): | 820*690*900(mm) | 1020*790*900(mm) | ||
Weight | 80kg | 95kg | ||
Power supply | 220V/50HZ、350W | 220V/50HZ、350W | ||
Air Pressure | 5MPa/500L/min | 5MPa/500L/min | ||
Speed | 20~35ea/min | 20~35ea/min | ||
Repeated accuracy | ±0.5mm | ±0.5mm | ||
Glue supply method | Single dispensing valve /Automatic continuous pressure stabilized spraying | Single dispensing valve /Automatic continuous pressure stabilized spraying | ||

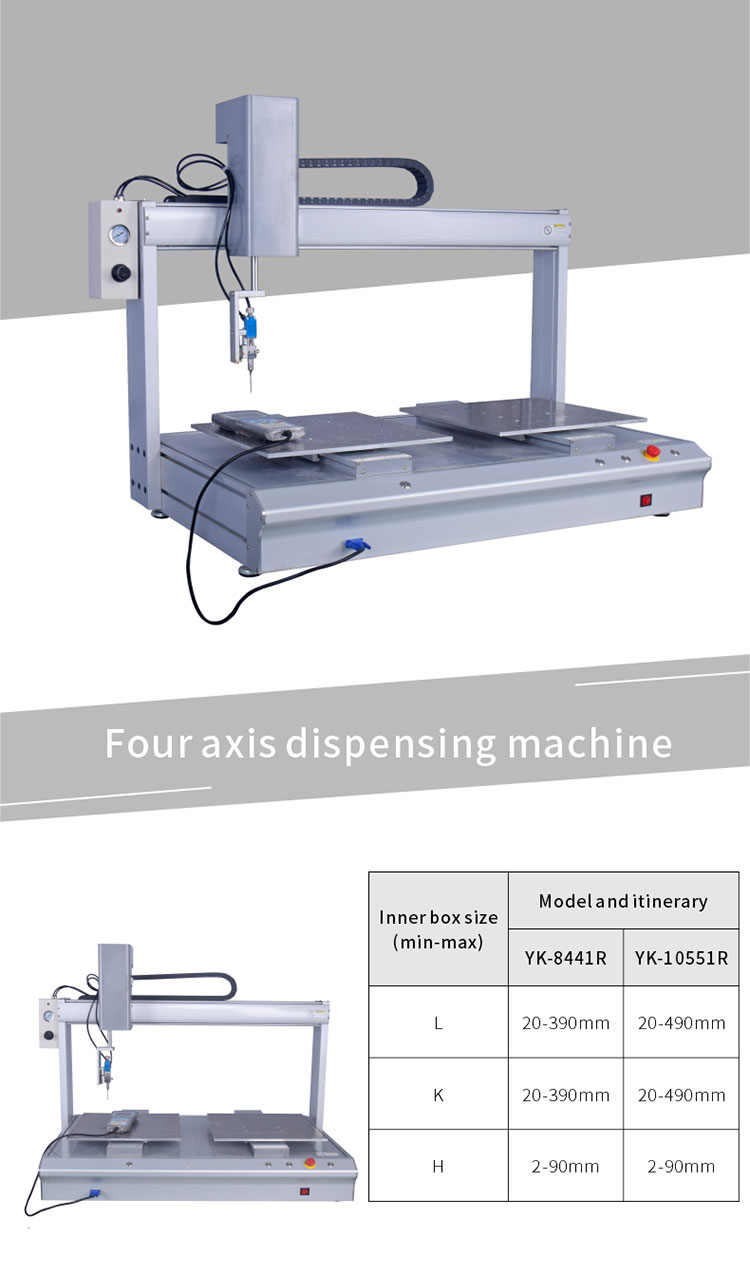

Inner box size | min-max | L=20-390mm | min-max | L=20-490mm |
K=20-390mm | K=20-490mm | |||
H=2-90mm | H=2-90mm |
Application industry:
The adhesive bonding process for packaging boxes such as plastic boxes, paper boxes, color boxes, leather boxes, PVC boxes, etc.
