Specification parameters

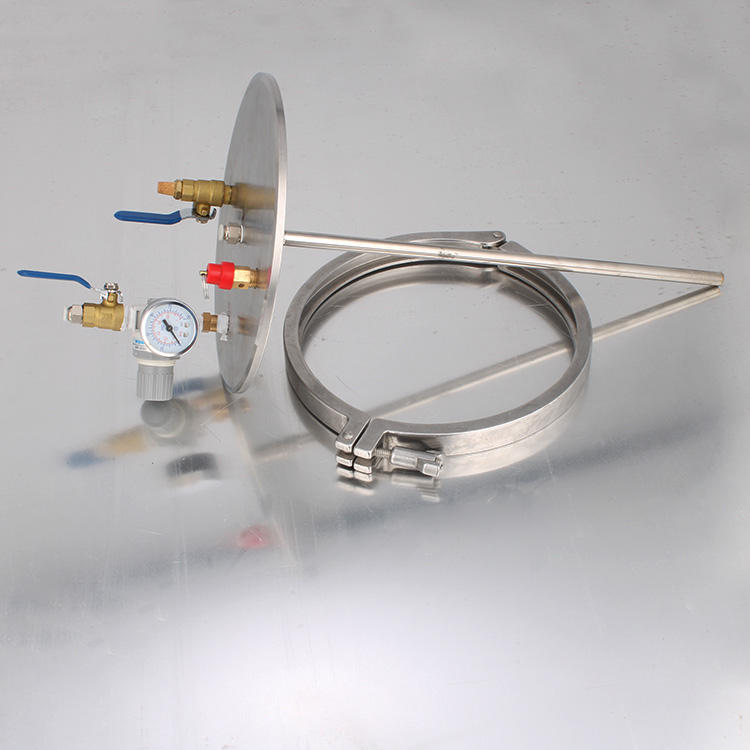

| Barrel lid thickness: 6mm Maximum pressure: 0.3MPa Material: 304 stainless steel Auxiliary components: sealing ring, safety valve, ball valve, 2 * 8 material joint, 2 * 6 gas joint | |||||
| Capacity （L） | Weight (KG) | Size(mm) | |||
| OD | ID | Inner (H) | Outer(H) | ||
| 1 | 3.5 | 108 | 102 | 130 | 140 |
| 2 | 4.5 | 133 | 127 | 170 | 180 |
| 3 | 6 | 133 | 127 | 245 | 260 |
| 4 | 6.5 | 15 | 153 | 235 | 280 |
| 5 | 7 | 159 | 153 | 285 | 300 |
| 8 | 12 | 219 | 213 | 235 | 250 |
| 10 | 14 | 219 | 213 | 290 | 300 |
| 15 | 15 | 219 | 213 | 435 | 450 |
