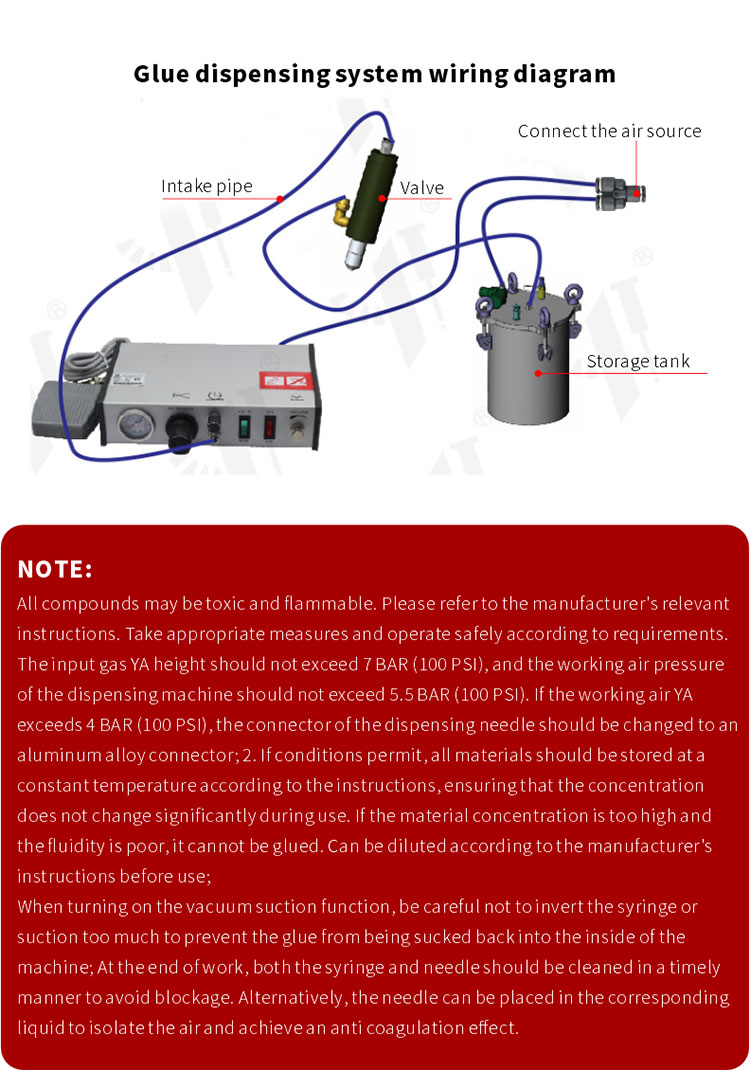

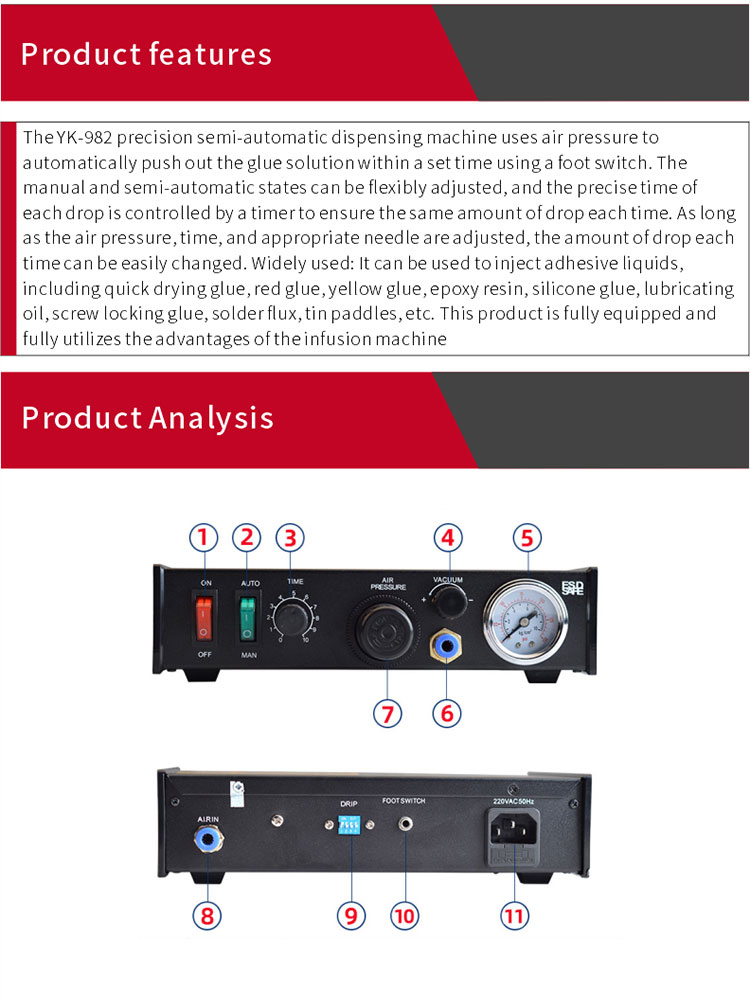

After the device is connected to the air source, use a foot switch or automatically push out the glue within the set time.
The manual and semi-automatic states can be flexibly adjusted, and the precise time of each drop column is controlled by a timer to ensure the same amount of drops. As long as the air pressure, time, and appropriate needle are adjusted, the amount of drops per drop can be easily changed.
Widely used:
Dripping glue can be injected, including quick drying glue, red glue, yellow glue, epoxy resin, silicone glue, lubricating oil, screw locking glue, anti soldering flux, tin paddles, etc. This product is fully equipped and fully utilizes the functions of the infusion machine.
| Technical Parameters | |
| Model | YK-982 |
| Automatic timer | Settable: 0.01-1S;0.1-10S;0.2-20S;0.3-30S |
| Manual timing | Continuous pedal (line drawing) or single touch pedal |
| Repetitive accuracy | ±0.5% |
| Dimension(L*W*H): | 235x265X63（mm) |
| Power supply | 220-240V 50HZ AC |
| Internal voltage | 12-24V DC |
| Minimum infusion volume | 0.01ml |
| In put pressure | 2.5-7BAR(35-100PSI) |
| Output pressure | 0.1-5.5BAR (1-78PSI) |
| Frequency | 600 times/minute |
| Total power | <8W |
