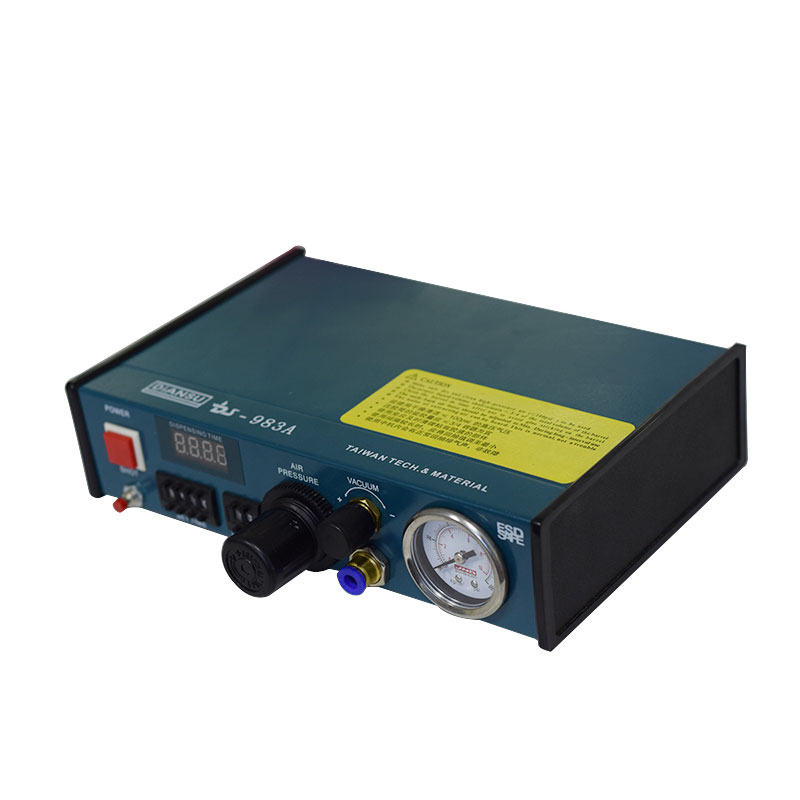

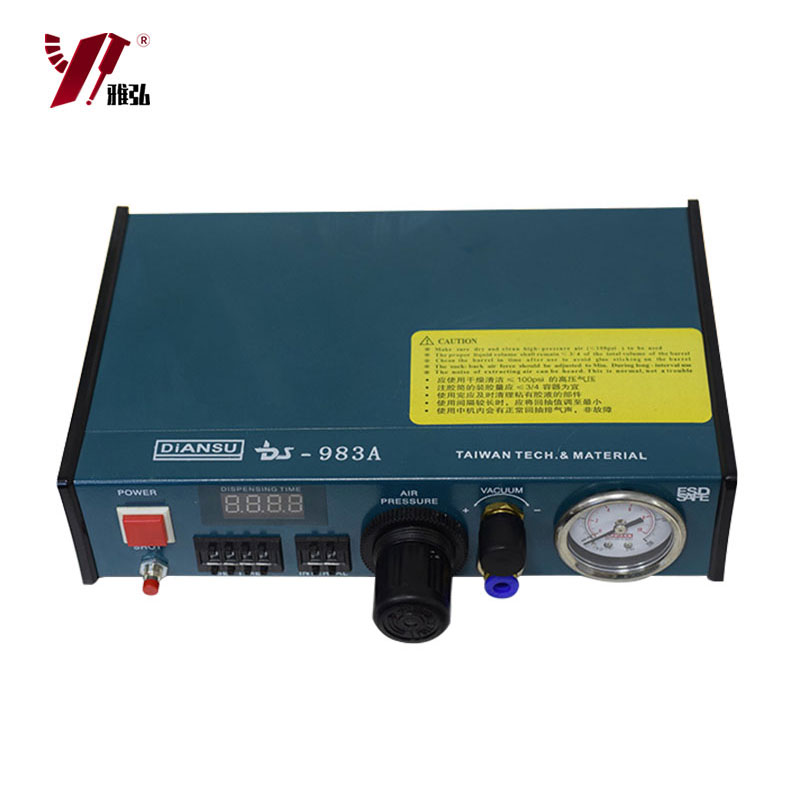

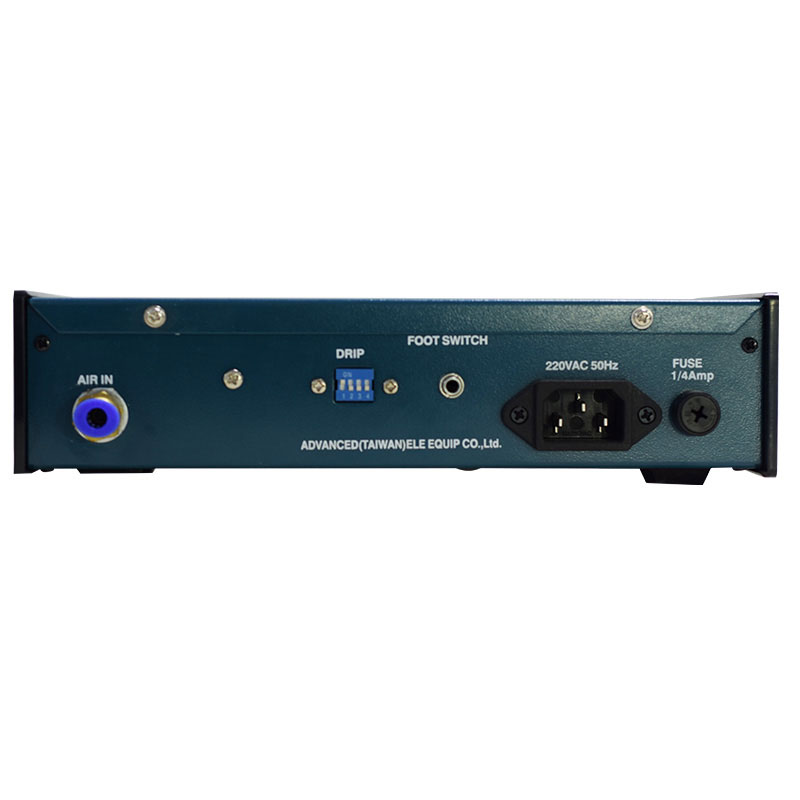

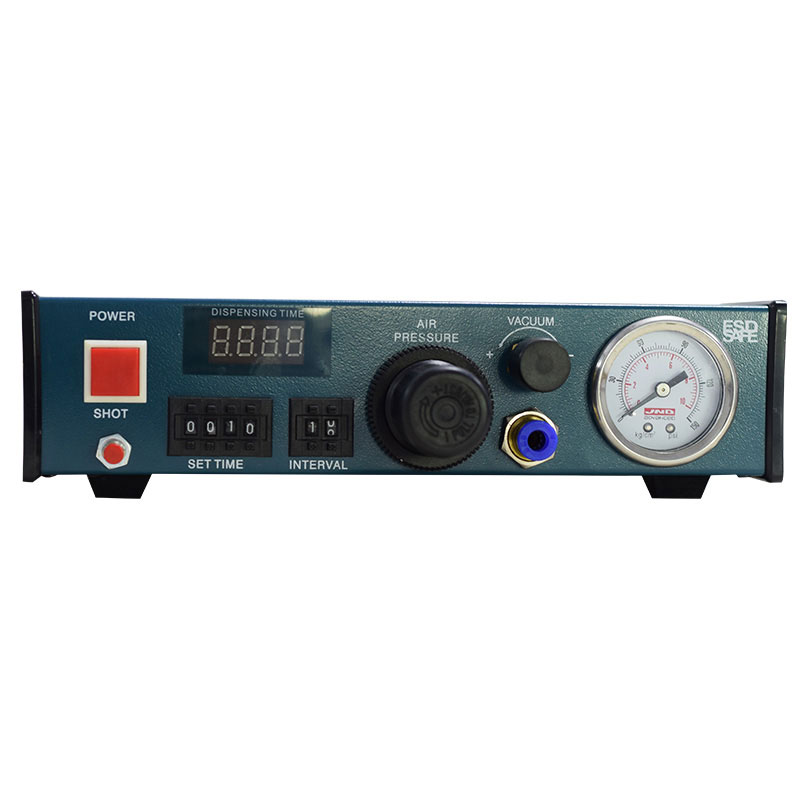

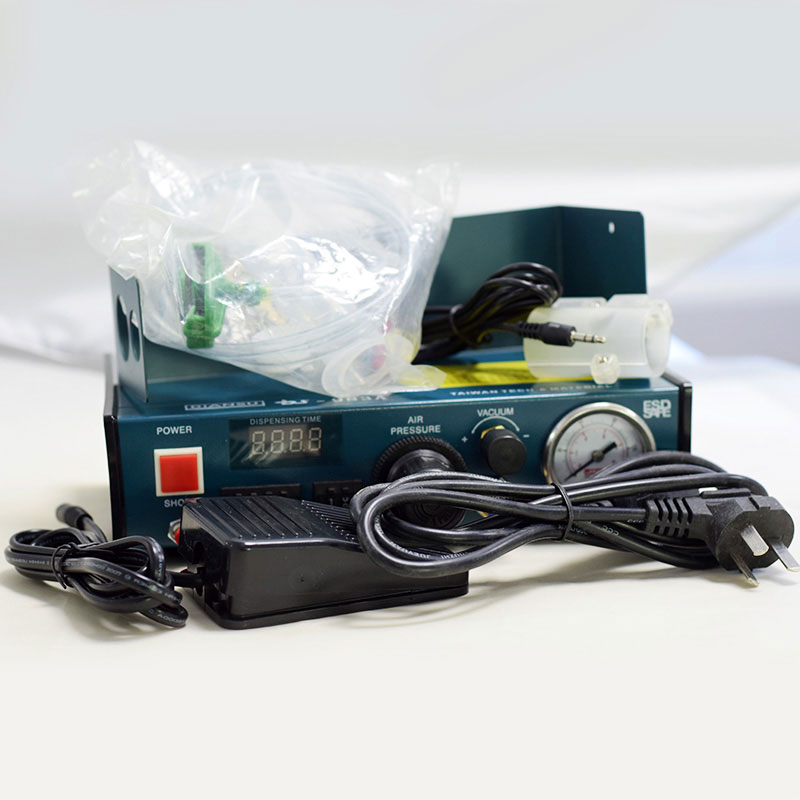

The YK-983 precision semi-automatic dispensing machine uses air pressure to automatically push out the glue solution within a set time using a foot switch. The manual and semi-automatic states can be flexibly adjusted, with a timer controlling the precise time of each glue drop to ensure the same amount. As long as the air pressure, time, and appropriate needle nozzle are adjusted, the amount of each glue drop can be easily changed.
Widely used:
Dripping glue can be injected, including quick drying glue, red glue, yellow glue, epoxy resin, silicone glue, lubricating oil, screw locking glue, anti soldering flux, tin paddles, etc. This product is fully equipped and fully utilizes the functions of the infusion machine.
| Technical Parameters | |
| Ejection mode | 16 free setting methods with output time display |
| Automatic timer | 0.01S-99.885s |
| Manual timing | Sustainable spitting, coating, and marking. |
| Minimum throughput | 0.0001ml |
| Spitting interval time | 0.1-9.9S automatic timing function |
| Power supply | 220-240V 50HZ AC |
| Internal voltage | 12VDC |
| In put pressure | 10-100PSI |
| Output pressure | 1-80PSI |
| Dimension(L*W*H): | 238x225x63cm |
| Weight | 2.2KG |
