Features & Advantages:
1.Easy to operate, Cost-effective.
2.Four axis control system can moving vertical and horizontal.
3.Multiple way to put materials in the table, which can put down in flat or folded.
4、Reduce labor cost and can save around 40% glue compare with handwork.
Technical Parameters
| Model: | Four-axis YK-8870R |
| Dimension(L*W*H): | · |
| Glue width: | 880*700mm |
| Glue thick: | 0.1-2mm |
| Moving speed: | 600mm/s |
| Ascending mode and height: | 0-100MM Automatically |
| Gluing way: | Spraying: Round,Sect or Dispensing strip format |
| Date storage: | 2000PCS |
| Pressure: | 0.5-0.8MPA |

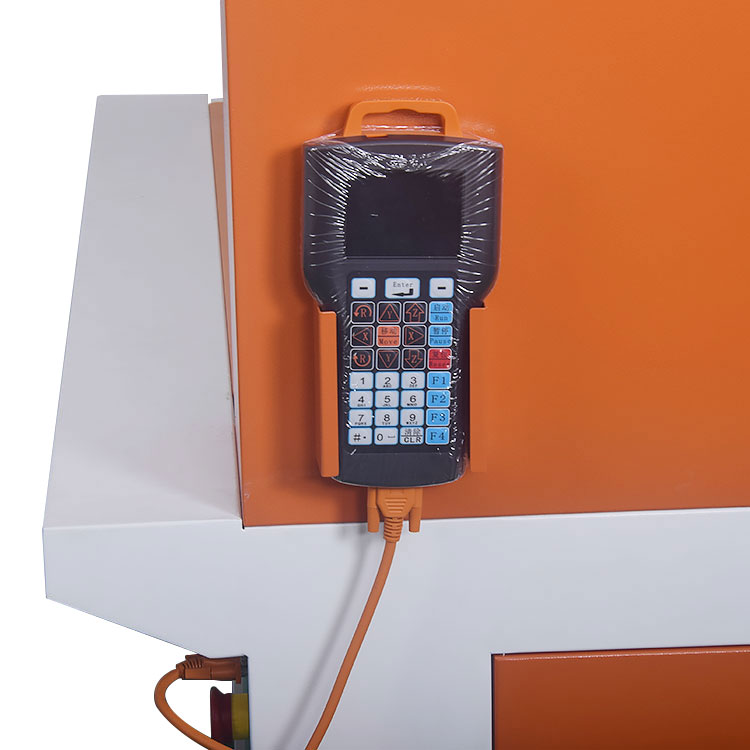

| Operation | Hand-held operation board |
| Language | Chinese/English switch |
Glue type:
Yellow Glue, all-purpose adhesive, White LaTeX，PU glue and so on.Suitable for most of hot melt glue and cold glue.
Application industry:
Packaging, auto parts, non-woven fabrics, furniture and household appliances, filters, sanitary products, footwear, toys, clothing and clothing composite, bottle cap bonding and other health and environmental protection.
