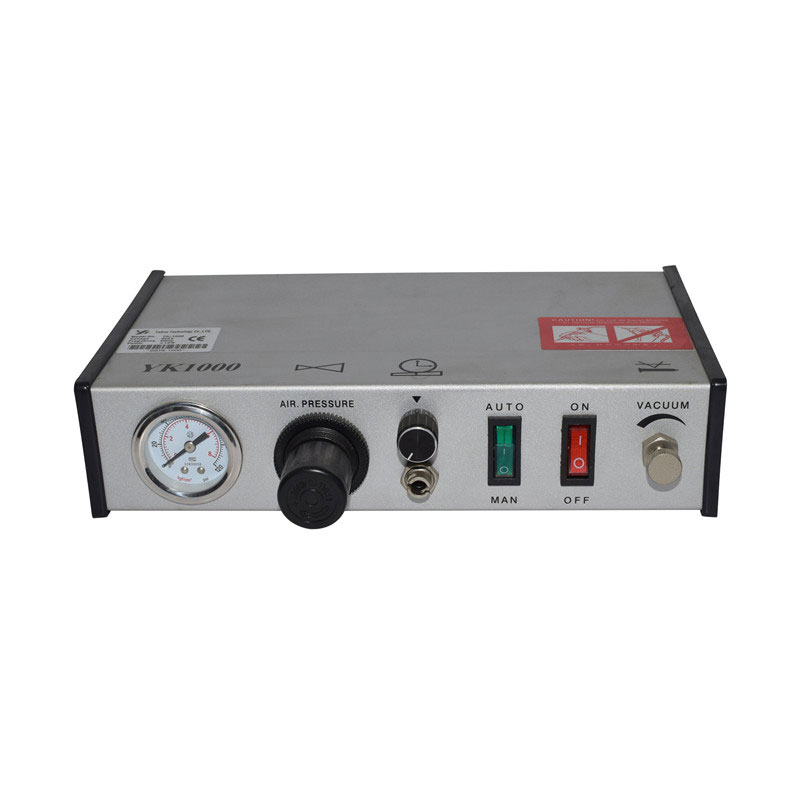

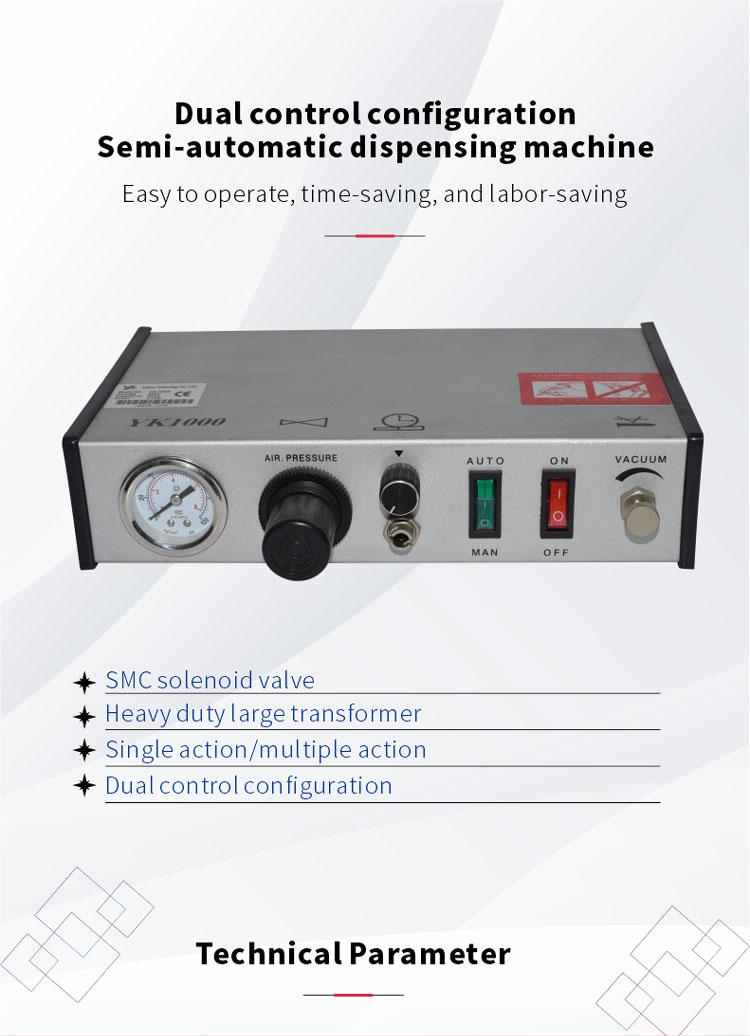

This machine is powered by compressed air and pushes out the liquid through switch control within a set time. To achieve precise dispensing, manual and semi-automatic states can be adjusted according to production needs. High precision digital timing controller and imported air pressure regulating valve are used to accurately control each dispensing time and amount. Equipped with vacuum suction function, different viscosity liquids can be controlled to prevent leakage, and overall
Simple operation, less fatigue, no waste, can better improve production efficiency.
Technical Parameters
| Liquid supply time | 0.01S-1S, 0.1S-10S, 0.2S-20S |
| In put pressure | 0.5Mpa–0.7Mpa |
| Output pressure | 0.01Mpa–0.7Mpa |
| Repetitive accuracy | ±0.5% |
| Minimum infusion volume | 0.005ml |
| Working speed | > 100次/分 |
| Power supply | 220V±10% 50Hz |
| Total power | <15W |
| Weight | <3Kg |
Applicable fluid:
Adhesives, damping oil, addition of ring adhesive, oxygen free adhesive, chemical reagents, soldering flux, brazing flux, organic silicone, grease, solidified covering agent, solder resist, ink, paint, solder paste, fiber paint, etc.
Application industry:
Widely used in fields such as electronics, aviation, optics, automobiles, watches, healthcare, petroleum, packaging, jewelry, and machinery.
