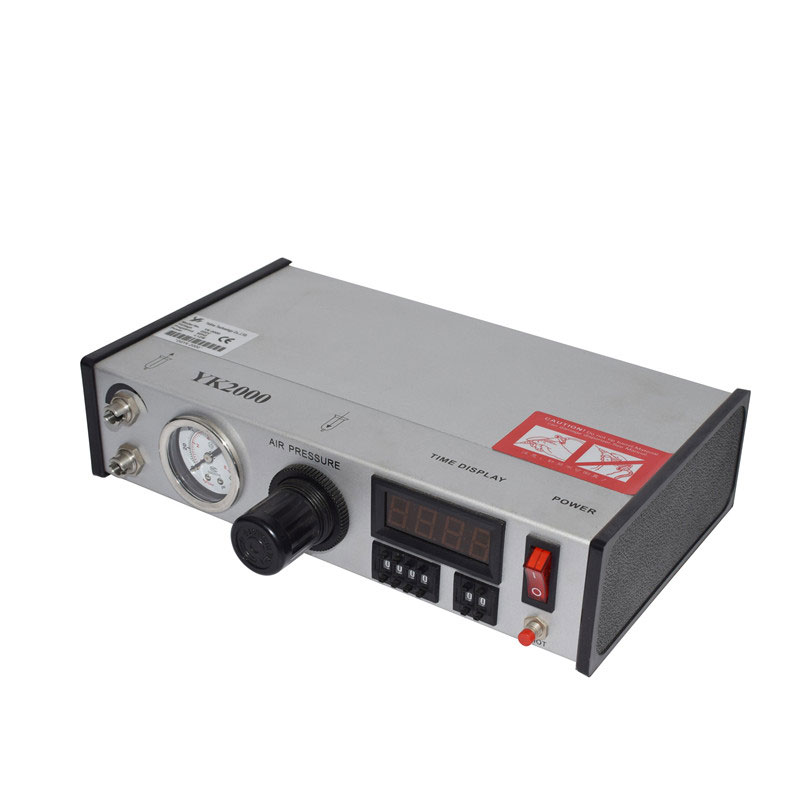

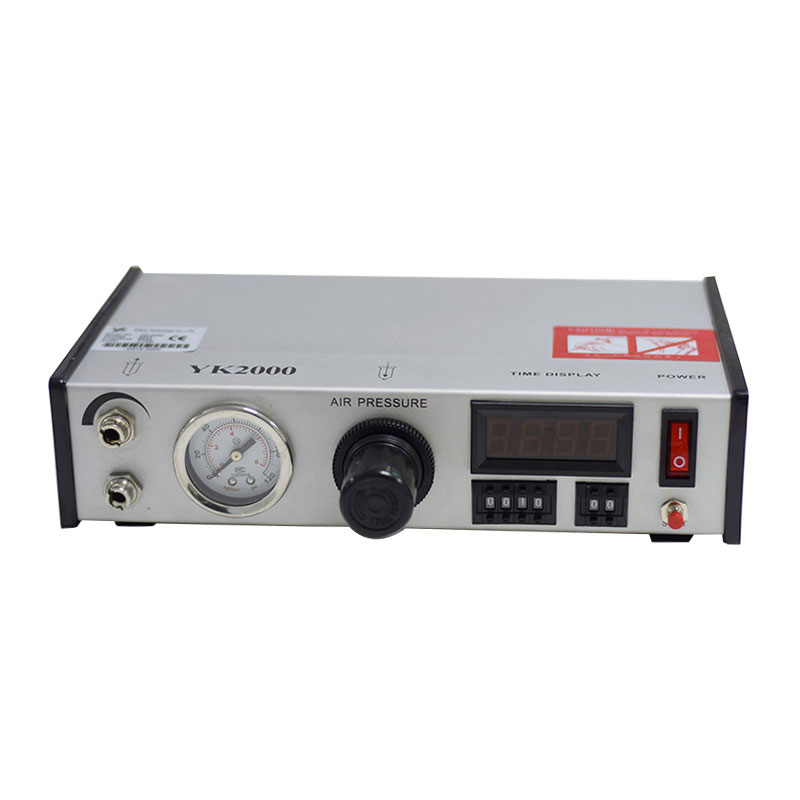

This machine is an upgraded version of YK-1000, using the latest microcontroller technology and LED time display. The precise digital circuit control can ensure the accuracy and repeatability of the dispensing machine. The unique cycle function can reduce labor intensity, improve production efficiency, and adjust the minimum adjustment range of the time dial to 0.01 seconds, allowing for minimal changes in dispensing volume.
Technical Parameters
| Time display | Four position LED display |
| Glue release time | 0.01S～99.99S |
| Interval time | 0.1S～9.9S |
| In put pressure | 0.5Mpa–0.7Mpa |
| Output pressure | 0.01Mpa–0.7Mpa |
| Repetitive accuracy | ±0.1% |
| Minimum infusion volume | 0.005ml |
| Working speed | >200 times/minute |
| Power supply | 220V±10% 50Hz |
| Total power | <15W |
| Weight | <3Kg |
Applicable fluid:
Adhesives, damping oil, addition of ring adhesive, oxygen free adhesive, chemical reagents, soldering flux, brazing flux, organic silicone, grease, solidified covering agent, solder resist, ink, paint, solder paste, fiber paint, etc.
Application industry:
Widely used in fields such as electronics, aviation, optics, automobiles, watches, healthcare, petroleum, packaging, jewelry, and machinery.
