Product features:

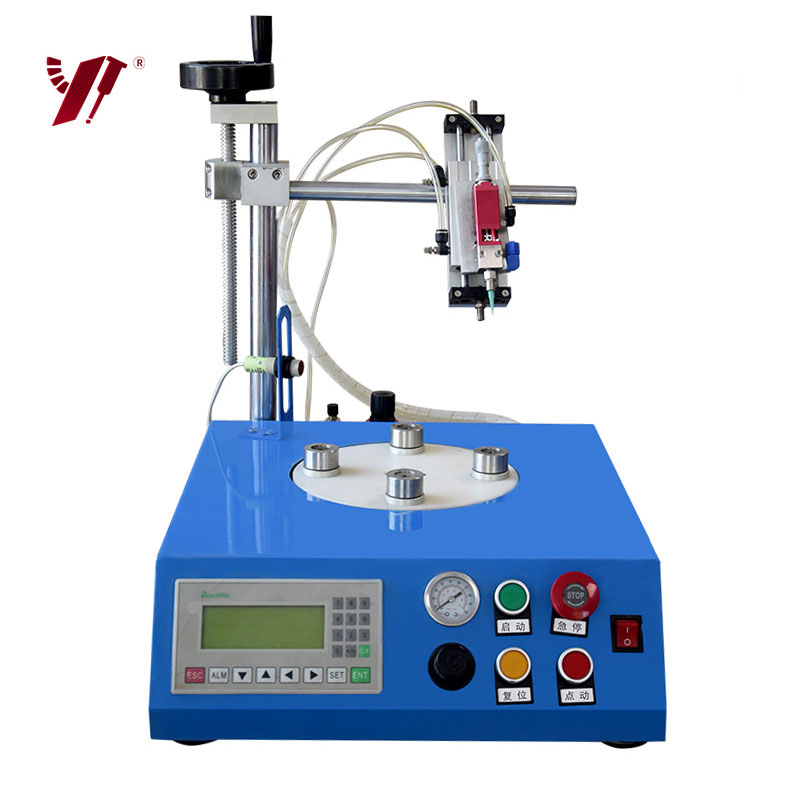

1. Desktop type 4-position indexing disc design, improving work efficiency while improving space utilization; Adopting industrial PLC and text controller control, easy to operate and user-friendly;
2. You can freely set the pre and post dispensing delay time to eliminate the phenomenon of "big end" and wire drawing during dispensing operations;
3. Double precision stepper motor transmission, precise and reliable reciprocating motion, making the equipment fast and stable during operation, eliminating mechanical motion errors;
4. Equipped with an X-Y fine-tuning table to ensure precise machine positioning and quick machine adjustment mechanism settings Can be used on this series of devices.
5. The characteristic fixture can directly use 330ml silicone dispensing.
Applicable glue:
Red glue, yellow glue, silver paste, curing glue, lubricating oil, epoxy resin, silicone, glass glue, silicone rubber, etc.
| Technical Parameters | |
| Model | YK-QPD40 |
| Main control unit | Dedicated bulb light system |
| Programming method | Xinjie Text |
| Driving method | Precision stepper motor |
| Disc rotation diameter | Four stations 110mm/two stations 160mm/single head 490mm |
| Maximum dispensing diameter | 400mm |
| Motor speed | 0-300 rpm |
| positioning accuracy | ±0.1mm |
| Z-axis adjustment method | Trapezoidal screw adjustment+double guide cylinder |
| Z-axis adjustment range | 250mm |
| Z-axis travel | 50mm |
| Dimension(L*W*H): | 540x420x700(mm) |
| Weight | 28kg |
| Power supply | AC220V/50~60Hz/150W |
| Working air pressure | 0.4~0.6Mpa (without water mist) |
| Environmental temperature and humidity | 0-40 °C |
Applicable industries:
Bonding, packaging, coating, and coating of circular products such as bulb lights/horns/motors/watches.
